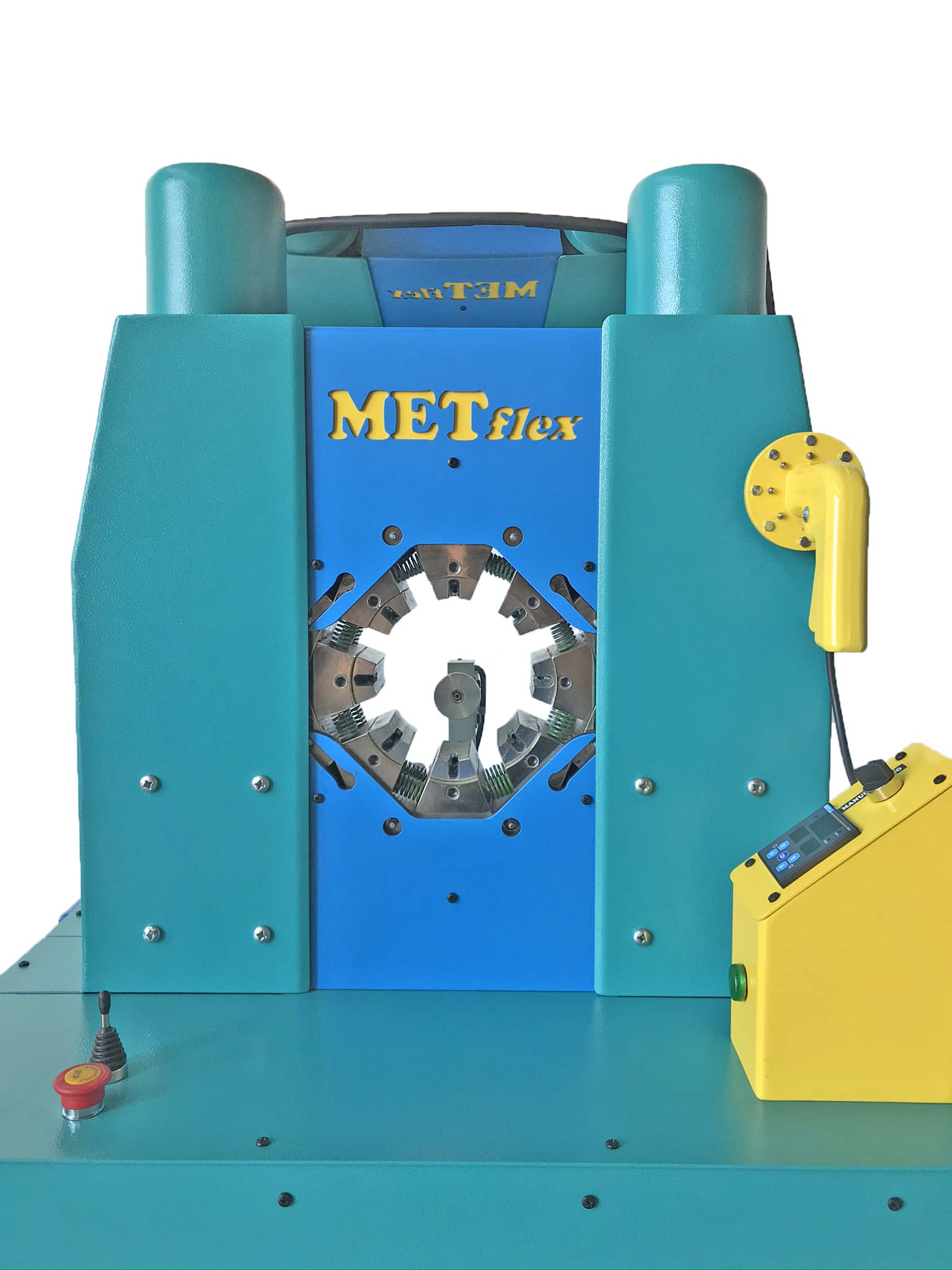

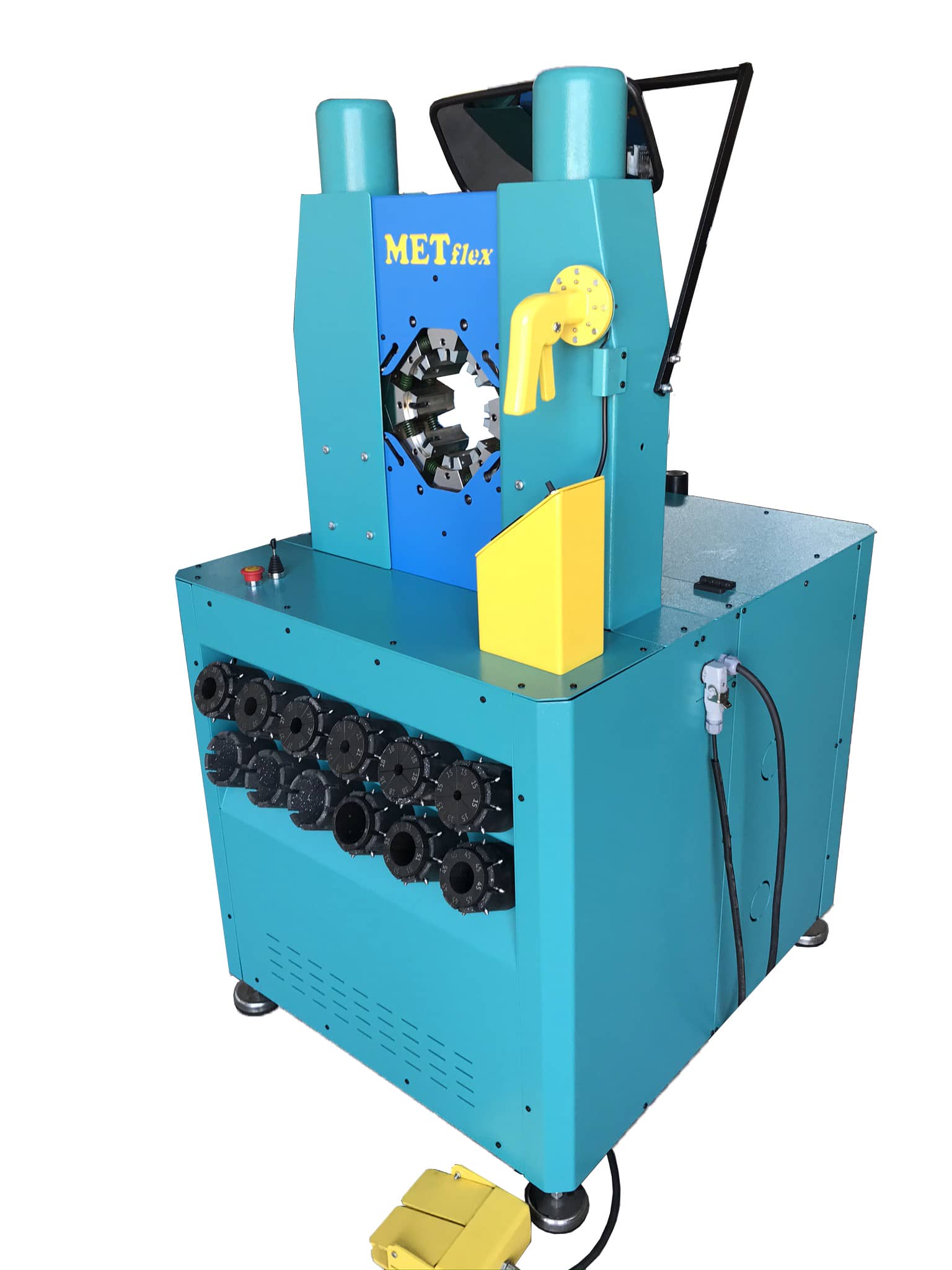

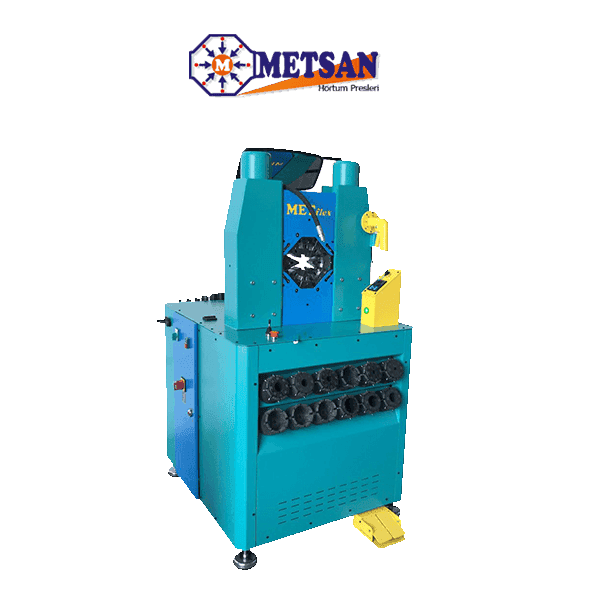

MT 30-Hose Crimping Machine
- 4″ Hose Crimping Machine
- Crimping force 300 tons
- 3/16″-2 1/2″ R1-R2-4SH-R15 hoses
- Crimps 3″- 4″ Industrial Hoses
- Clamping capacity up to 120 mm outer diameter
- 7.5 kW electric motor
- Max opening diameter 200mm
- Easy mold changing device
- Digital control
- Automatic and Manual use
- The machine comes with molds that allow you to squeeze hoses with 3/16″ – 4″ inch sides and 90 degree elbows as standard.
- Ability to set return time in automatic uses
- Specially designed mold rack for each mold
- Hose peeling machine (mounted on the press machine) (no need for a separate hose peeling machine)
- 3/8″-2″ hose peeling molds are standard on the machine.
- Use with foot pedal
- Mirror that provides easy visibility to the rear
- Rear record support device for mass production works
- A serial machine that is very easy to use
- Squeezing speed 12 pieces / min minimum
- Machine size: Width 90cm/Length 110cm/Height 170cm
- Weight 950 kg
OPTION
-PLC 7 inch color touch screen
-Oil cooler
METflex MT30 model Hydraulic Hose Crimping Press Machine; It is produced to compress high pressure hydraulic hose, air conditioning hose, steering hose, brake hose, hydraulic record, pipe, steel rope, air suspension bellows.
We produce extrusion dies in the form and diameter you want for you to use in our METflex Hose crimping machines.
