Articles
Our articles cover five subjects: how to crimp a hydraulic hose step by step, how to measure crimp diameter with calipers, forming a male end (“taklan”) on the ends of 48-size scaffolding pipes by swaging, why a hydraulic hose press matters for the hose connection, and our place at the CTT EXPO fair in Moscow in 2024. For machine values look at our products; for hose standards, at our guide.
Which articles do we have?
We have five articles: two practical guides on hose crimping and measuring crimp diameter, a scaffolding pipe application, a general piece on why a hydraulic hose press matters, and a trade fair report.
Read more
You can open each article to read it in full. For price or delivery information, write to us: request a quote and we will tell you according to your needs.
What do the five articles say in one sentence?
How to crimp a hydraulic hose:
cut, skive, crimp, check: five steps from cutting the hose square to checking the crimp diameter, the equipment you need and common mistakes.
How to measure hose crimp diameter:
what crimp diameter is, how to find the target in the fitting maker’s table and how to measure it with calipers.

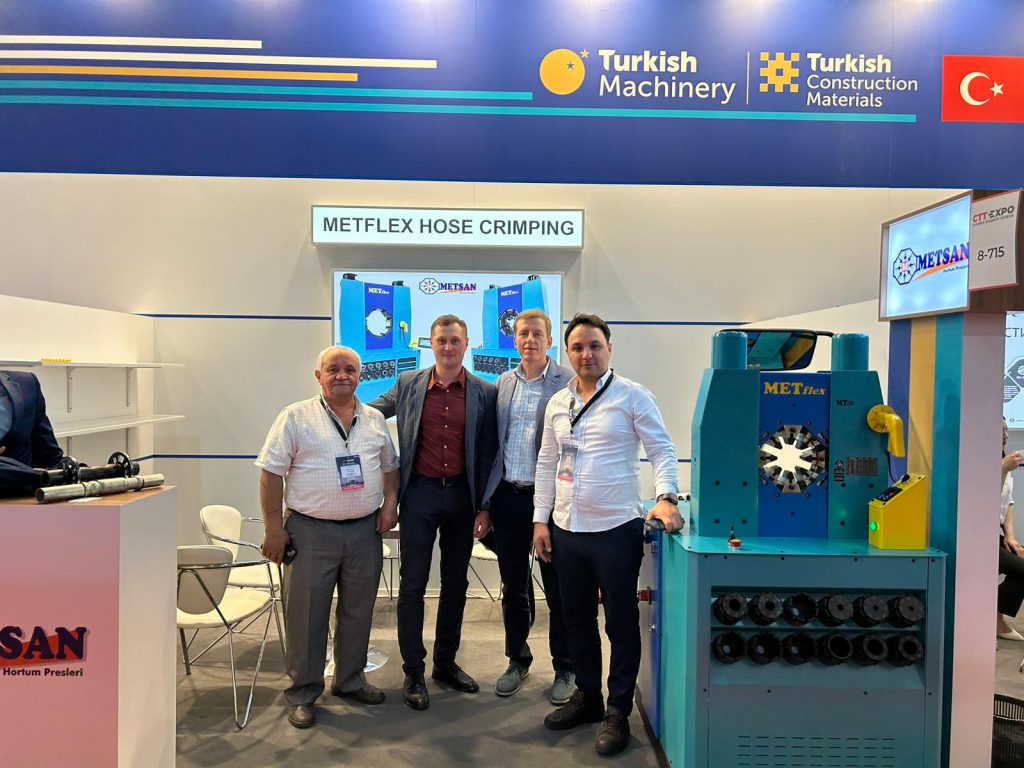

Metsan Teknik at CTT EXPO 2024 Moscow:
in 2024 we attended CTT EXPO in Moscow with METflex-branded hydraulic hose press machines; our machines are used in construction, agriculture, industry and mining.

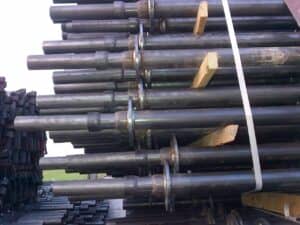

Precision Swaging of 48-size Pipes with Metflex Pipe Presses:
describes swaging to form a male end (“taklan”) on the 48-size pipes of scaffolding systems, and its advantages.
The Importance of Hose Press Machines in Hydraulic Systems:
explains in seven headings why a press matters for safety at the hose connection, high-pressure resistance, service life, standards compliance, speed and repeatability.
Which points do the articles list?
The hose crimping guides list the steps, the pipe article the advantages of swaging, the hose article the importance of the press:
Hose crimping guide:
cutting, skiving, marking the insertion depth, choosing the die, crimping on the press and checking afterwards.
Crimp diameter guide:
finding the target, measuring with calipers, tolerance, what to do if the size is out of range and what spoils the measurement.
Pipe article:
durability, easy assembly, safe connection, cost advantage, fast production.
Hose article:
safety at the connection, high-pressure resistance, long life, standards compliance, speed, repeatable quality, fit of hose and fitting.
Which of our machines relate to the articles?
The scaffolding article covers the same subject as the Pipe End Press; send us your pipe size and quantity and we will tell you if it fits. The hose press article is about the shared job of our five hose crimping models: crimping a fitting onto a hose. For scaffolding pipes the “48” size usually means an outer diameter of about 48 mm.
What is asked most about the articles?
How do I crimp a hydraulic hose?
Cut the hose square, clean the bore, skive the cover if the hose needs it, mark the insertion depth and crimp with the right die to the table diameter; then check the mark and measure the crimp diameter with calipers.
How do I measure hose crimp diameter?
Crimp diameter is the outer diameter of the ferrule after crimping. Put calipers on the flat part of the ferrule, off the ridges, at two opposite points. The target comes from the fitting maker’s table.
Which trade fairs has Metsan Teknik taken part in?
In 2024 we took part in the CTT EXPO fair in Moscow with our METflex-branded hydraulic hose press machines.
How is a male end (“taklan”) formed on a pipe end?
The pipe-end press applies high pressure to the pipe end and shapes the metal to the die, forming a male end; the pipe then joins another pipe or a fitting more easily and securely.
Why is a hose press machine needed?
By crimping the fitting on the hose end correctly it makes the connection secure and leak-tight, repeats the same precision on every crimp and is faster than manual methods.
